West Side Lumber Co. #12 TRS2010

Type: Class C Shay

Gauge: 36"

Date Created: 27DEC2012

KUID: 86661:1412

Download Now

TRS2010 - TRS2012 VERSION ONLY!!!

CDP PACKAGE FILE INCLUDES ALL REQUIRED DEPENDENCIES.

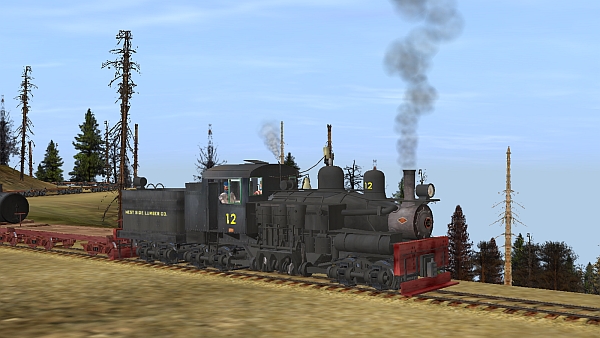

Narrowgauge Class C Shay geared logging locomotive. This model represents builder's serial number 3302 operated on the West Side Lumber Co. railroad operations as the number 12 out of Tuolumne in the state of California from 1940 to 1961. Uses a heavy girder steel frame and cast steel bogey frames. It was built in the Lima shops in 04-21-1926 originally for the Swayne Lumber Co., Oroville California. This locomotive is on the Shay Survivor List and is located in Colorado, USA.

This model has been modified from the original version in order to operate without error in TRS2010+. Mesh objects have been modified and syntax errors have been fixed. Use within versions of Trainz other than TRS2010 and TRS2012 has not been tested nor is recommended. Due to the variability of user installed Trainz content and modified/removed built-in assets, this model cannot be guaranteed to work without error on every user installation. The user assumes all risk with installing and using this model.

This model was originally made for UTC but will work in TRS2010/2012. Does not include any "steam" engine spec but uses a modified diesel enginespec for simplicity. Weight and tractive effort approximates the actual engine parameters. Recommend exclusive use of "DCC" driving mode within Trainz. I am not interested in creating steam enginespecs any longer so please do not inquire. Experienced Trainz enthusiasts may modify or create their own steam enginespec for personal use using the parameters below.

PROTOTYPE SPECIFICATIONS

Wheels:

12 at 32" dia.

Cylinders:

[#-Diam x Stroke]
3 - 11 x 12

Empty Weight:

113,500 lbs

Tractive Effort:

25,830 lbs

Gear Ratio:

2.529

Boiler Pressure:

200psi

Fuel Capacity:

1200 gals oil

Water Capacity:

2000 gals





West Side #12 TRS2010 INSTALL INFORMATION


Simply download the CDP file above to a folder of your choosing.

Open Content Manager in TRS2010 or TRS2012.

Select "File" and then "Install CDP".

Navigate to where you downloaded the WSLC 12 T10 PAK.cdp file. Click the file.

Installer should complete and commit assets without error.

TRS2012 may show a caution for "Trainz build below 2.7 not supported" or something similar, this will not effect the model's operation and can be ignored.

Launch Trainz and enjoy. Model name in Trainz is "36 WSLC SHAY 12"

Report any non user induced asset errors to my contact link below, include the term "WSLC" in the subject line. Slugsmasher is not responsible for any user modified content.



KUID Table for WSLC 12 Shay TRS2010
KUID
DESCRIPTION
86661:1412
WSLC #12 locomotive body
86661:50430
fwd bogey truck
86661:50431
aft bogey truck
86661:50432
fwd line shaft
86661:50433
cylinder assembly and crankshaft
86661:50434
aft line shaft
86661:51012
enginespec note: this is a UTC model and does not incorporate TRS2004 steam effects. The engine can be driven in cabin mode but operates with a "diesel" style enginespec and control specification. The enginespec is set up to simulate the tractive effort and top speed of the prototype.
86661:53012
enginesound
86661:54012
hornsound
86661:55012
interior
86661:15412
WSLC #12 tender body
86661:50436
tender bogey truck
86661:50435
tender line shaft
BUILT-IN ASSETS REQUIRED
-1:42004201
default wagon
-10:149
invisible bogey
-3:10004
water
44179:60013
coal
