Portfolio

Here you will find close in screenshots of a select few models. The selected models best illustrate the current quality of my model and texture work. For a full list of models produced, see the links for the TC3+ and TRS2004 download sections to the left.

Overview of American Car & Foundry composite boxcar. The air hose and doors are animated and the chalk route markings are randomized.

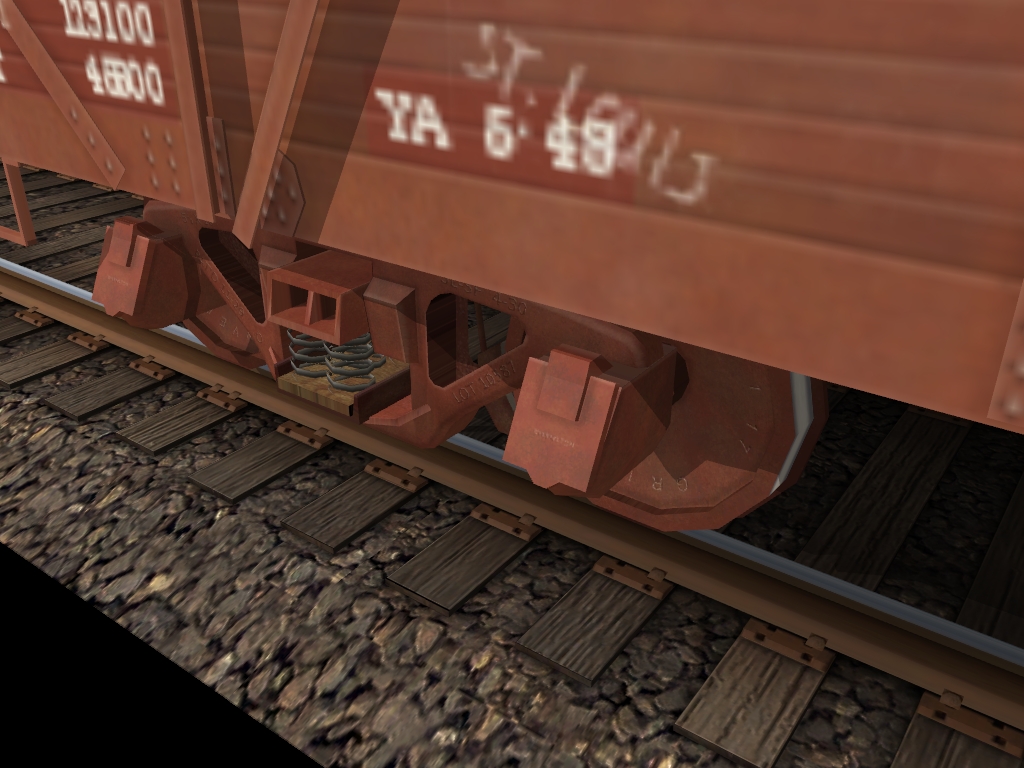

Close up on the Scullin LV50 trucks upon which the car rides. The brake rigging is animated.

Brake rigging under the carbody. The brake piston and linkages are animated.

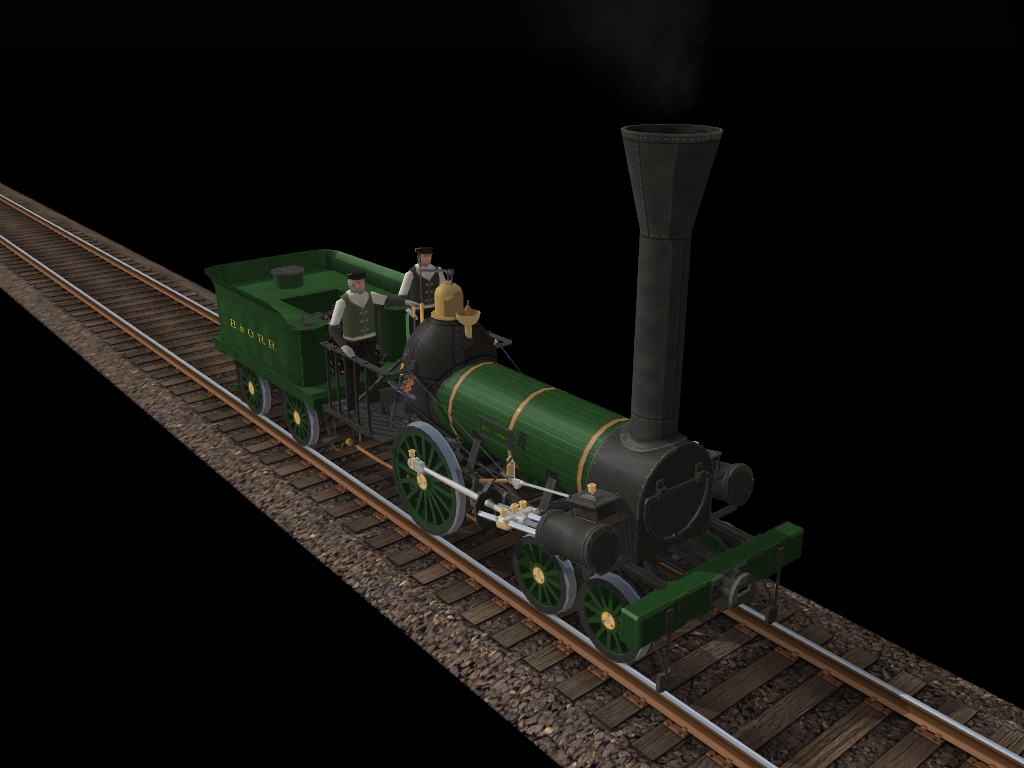

Overview of Norris Class A 4-2-0 steam locomotive. The crew is animated

Valve gear on the Norris 4-2-0.

Tender for the Norris 4-2-0.

Backhead of the Norris 4-2-0. As the prototype predated sight glasses, I wrote a script simulating functional try-cocks (the three valves on the right side of the firebox.)

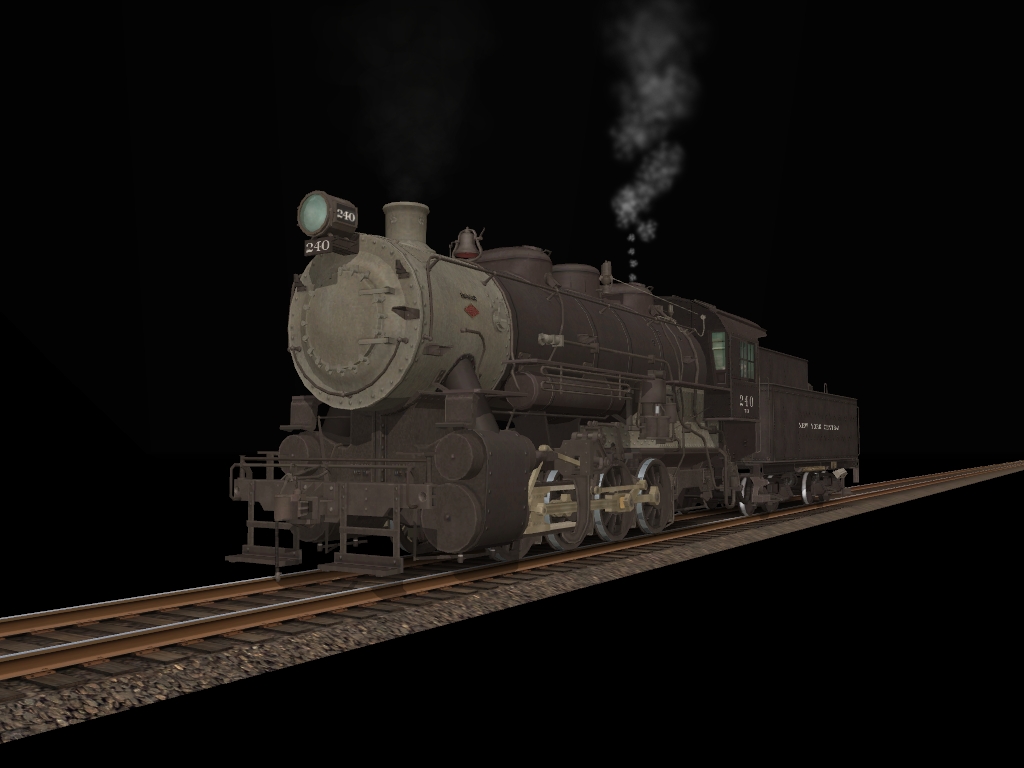

Overview of the USRA 0-8-0 steam locomotive.

Tender of USRA 0-8-0. The brake rigging on the tender body and trucks is animated.

Close up on fireman's side of engine. Accurate casting markings for the compressor were made based on a research trip to visit a preserved USRA locomotive.

Close up on engineer's side of engine.
